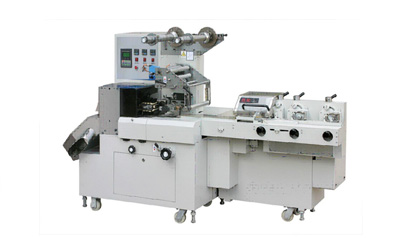

Pillow Type Packing Machine

Special note

Machinery Name: Pillow Type Packing Machine ( FLOW PACK)
Model: 800Q cut and wrap wrapping machine.
Packing Type: Pillow Type
Item to be packed :
Capacity: Max 500 pcs/min
Working Hour (suggestion): less than 20 hours per day. (but the machine can run 24 hours)
Packing material: PET+OPP, BOPP, CPP, PET+AL, and other one layer or double layer heated complex film.

Technical Specification of Main Equipment:

Product characteristics:
1.Automatic controlled by micro computer.
2.Automatic packing with the product line, improve efficiency, more salutary.
3.High precision, strong sealing performance high stability
Parameters:
Production capacity: 100-500 pcs/min (see different size)
Packing spec. : length 20-40/ 40-80/ 40-160mm width 12-20mm(Ф8-13) height3-18mm
Packing shape: Rectangle, Square, Cylindrical
Power supply: 220v/50hz or 380V/50hz (or you can tell me what you need)
Gross power: 4.6kw
Overall dimensions: 2250*900 * 1550mm ( L * W * H)
Gross weight: 1250kg
Thickness of the film: 0.045-0.05mm
Option:
Body of the machine: Stainless steel or Cast Iron.
Main electric component:
PLC: SIEMENSE (Germany, made in CHINA)
Touch Screen: SIEMENSE (Germany, made in CHINA)
Photo sensor: SICK (Germany)
Temperature controller: OMRON (Japan)

Fitting List of 800Q

Tools
No.	Name		Quantity
1	Name and instrument’s specification		1pc
2	Inner hexagon spanner 2.5-12		1set
3	Special inner hexagon spanner 6		1pc
4	Special inner hexagon spanner 8		1pc
5	Double-ended spanner 8*10		1pc
6	Double-ended spanner 12*14		1pc
7	Double-ended spanner17*19		1pc
8	Double-ended spanner22*24		1pc
9	Double-ended spanner32*36		1pc
10	Cross screwdriver		1pc
11	Screwdriver		1pc
12	Hook wrench 55-62		1pc
13	Tension oil kettle		1pc
14	Steel wire brush		1pc
15	Brass wires brush		1pc
Spare parts (Remarks: spare parts is different between Stainless steel with PLC, Touch Screen and Cast Iron with normal PC Controller)
Spare parts for Stainless Steel with PLC and Touch Screen
No.		Name	Quantity
1		Brush (mid-sealing)27*70	10pcs
2		Up cutting knife (70mm)	4pcs
3		Down cutting knife (70mm)	4pcs
4		Blade	4pcs
5		Electro thermal circle 220V 400W	1pc
6		Electro thermal tube 220V/110W/Ф8*65	2pcs
7		Thermocouple	2pcs
8		Carbon brush with shelf	5pcs
9		Copper collar （two and four collar）	Each 1pc
10		Solid relay	2pcs
11		Relay LY2J	1pc
12		Transformer 220V/24V	1pc
13		Rectifier BR10-10 A96	1pc
14		Proximity switch IM12-04NNS-ZM1	1pc
15		Flat belt 636203	3pcs
16		Flat belt 505203	3pcs
17		Timing belt HTD920-8M-30	1pc
18		Timing belt HTD1200-8M-25	1pc
19		Timing belt HTD968-8M-25	1pc
20		Timing belt HTD880-8M-25	1pc
21		Timing belt HTD680-8M-25	2pcs
22		Timing belt HTD1290-5M-25	1pc
23		Timing belt HTD585-5M-25	1pc
24		Timing belt HTD960-5M-15	1pc
25		Timing belt 112M*L025	3pcs
26		Timing belt 240L12	3pcs
27		Material pushing claw	15pcs
28		Block claw body	5pcs
29		Limit pole	1pcs
30		Push material body (front-end 30mm)	1pc
31		Push material body (front-end 20mm)	1pc
32		Bevel gear (m=2.5 Z=24)	2pcs
33		Material pushing claw tie-in 415	5sets
34		Material pushing chain	1pc
35		06B-1 tie-in	2sets
36		06B-2 tie-in	2sets
37		Gross feeding-material chain	1pc
38		0.02 sheet copper	1pc
39		0.05 sheet copper	1pc
40		0.10 sheet copper	1pc
Spare parts for Cast Iron with normal PC Controller
No.		Name	Quantity
1		Brush (mid-sealing)27*70	10pcs
2		Up cutting knife (70mm)	4pcs
3		Down cutting knife (70mm)	4pcs
4		Blade	4pcs
5		Electro thermal circle 220V 400W	1pc
6		Electro thermal tube 220V/110W/Ф8*65	2pcs
7		Thermocouple	2pcs
8		Carbon brush	5pcs
9		Copper collar （two and four collar）	Each 1pc
10		Solid relay	2pcs
11		Relay LY2J	1pc
12		Relay MY4N	1pc
13		Transformer 220V/24V	1pc
14		Transformer 220V/110V,15V,9V	1pc
15		Rectifier BR10-10 A96	1pc
16		Proximity switch OBM-D04NK	1pc
17		Flat belt 636203	3pcs
18		Flat belt 505203	3pcs
19		Timing belt HTD920-8M-30	1pc
20		Timing belt HTD1200-8M-25	1pc
21		Timing belt HTD968-8M-25	1pc
22		Timing belt HTD880-8M-25	1pc
23		Timing belt HTD680-8M-25	2pcs
24		Timing belt HTD1290-5M-25	1pc
25		Timing belt HTD585-5M-25	1pc
26		Timing belt HTD960-5M-15	1pc
27		Timing belt 112M*L025	3pcs
28		Timing belt 240L12	3pcs
29		Material pushing claw	15pcs
30		Block claw body	5pcs
31		Limit pole	1pcs
32		Push material body (front-end 30mm)	1pc
33		Push material body (front-end 20mm)	1pc
34		Bevel gear (m=2.5 Z=24)	2pcs
35		Material pushing claw tie-in 415	5sets
36		Material pushing chain	1pc
37		06B-1 tie-in	2sets
38		06B-2 tie-in	2sets
39		Gross feeding-material chain	1pc
40		0.02 sheet copper	1pc
41		0.05 sheet copper	1pc
42		0.10 sheet copper	1pc
