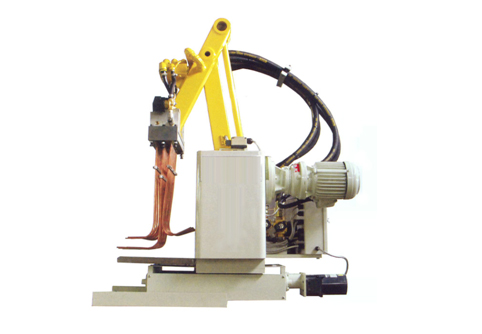

Sprayer With Inventer

Special note
Feature:
1.The spraying volumn of the copper thbes or module spray head can be adjusted by single row or separately.When single point spraying or countinuing movable spraying,single row spraying two rows spraying or middle blowing are available.
2.Driven by servo motor,start and stop quickly,working stably and precisely
Details
PARAMETER
 Machine type
CSSP-1
CSSP-2
CSSP-3
CSSP-4
CSSP-5
CSSP-6
CSSP-7
 Suitable die-casting
 machine
125T-200T
250T-400T
500T-630T
800T-1000T
1250T-1600T
1800T-2500T
2800T-4000T
 Number of copper pipe
≥30PCS
≥40PCS
≥50PCS
≥70PCS
≥90PCS
≥100PCS
≥110PCS
 Ascending&
 descending length
650mm
800mm
1100mm
1200mm
1600mm
1700mm
2000mm
 Foundation length
250mm
250mm
400mm
400mm
500mm
500mm
600mm
 Ascending&
 descending motor
0.37KW
0.37KW
0.75KW
0.75KW
1.5KW
1.5KW
1.5KW
 Power Capacity
380V/0.5KVA
380V/0.5KVA
380V/0.8KVA
380V/0.8KVA
380V/2KVA
380V/2KVA
380V/2KVA
 Cycling meter
5sec
5sec
6sec
6sec
8sec
10sec
12sec
