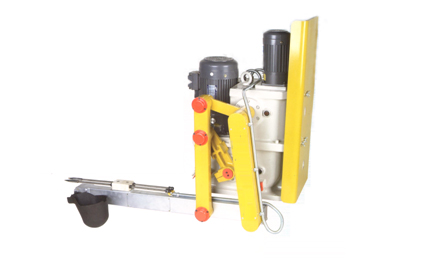

Four-bar Soup Supplying Machine

Special note
Features:
1.Main parts and electrical components are imported with low failure rate and long service life.
2.Shanks,worm wheel and worm are used for transmission so that the arm can move stably.The imported PLC and transducer with Chinese HMI.
Details

PARAMETER

 Specification machine type

1#
2#
3#
4#
5#
6#
7#

 Suitble dia-casting machine

125-200T
250-350T
400-500T
630-800T
1000-1250T
1600-2000T
2500-3000T

 Soup supplying amount

0.5-2.0KG
1.0-3.5KG
1.5-6.0KG
2.5-8.0KG
6.0-15KG
18-25KG
20-40KG

 Soup supplying precision

+/-2%
+/-2%
+/-2%
+/-2%
+/-2%
+/-2%
+/-2%

 Ladle

0.5-2.5KG
1.0-4.5KG
1.5-6.0KG
2.5-8.0KG
6.0-15KG
18-25KG
20-40KG

 Inner diameter of crucible

450mm

500mm
550mm
600mm
800mm
850mm
900mm

 Wall thickness of melting stove

300mm
300mm
300mm
350mm
350mm
400mm
400mm

 Depth of crucible

≥400mm
≥500mm
≥500mm
≥580mm
≥600mm
≥750mm
≥800mm

 Power supply

Three-
phase
380V
Three-
phase
380V
Three-
phase
380V
Three-
phase
380V
Three-
phase
380V
Three-
phase
380V
Three-
phase
380V

 Power supply capacity

1.0KVA
1.0KVA
1.5KVA
2.0KVA
3.0KVA
5KVA
5KVA

 operation power supply

DC24V
DC24V
DC24V
DC24V
DC24V
DC24V
DC24V

 Ladle motor

0.2KW
0.2KW
0.4KW
0.4KW
0.75KW
1.5KW
1.5KW

 Arm motor

0.75KW
0.75KW
0.75KW
1.5KW
2.2KW
3.7KW
3.7KW

 Time for transferring and pouring

5sec
5sec
6sec
6sec
10sec
12sec
12sec
