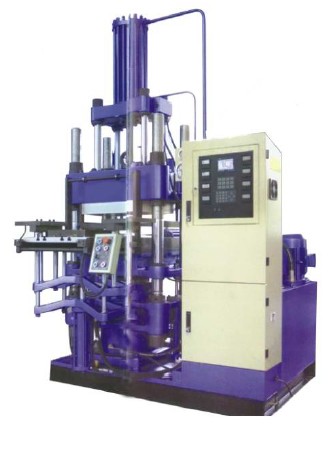

Transfer Type Molding Machine For Rubber

Special note

XZB series transfer type molding machine for rubber. It is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall., these products’ process is complex and more difficult to form. Among them “the multi-purpose rubber transfer type molding machine (semiautomatic rubber injection molding machine) based on the frequency conversion technology” was established as National Science and Technology Ministry innovation fund project of technology type medium and small enterprises.

Details

MODEL	XZB-D400×400	XZB-D500×500	XZB-D550×600	XZB-D650×700	XZB-D850×1000	XZB-D1000×1200
Clamping force	630 kN	1000 kN	2000 kN	3000 kN	4000 kN	6000 kN
Clamping stroke	250 mm	300 mm	300 mm	350 mm	400 mm	450 mm
Rapid clamping speed	≥50 mm/s	≥50 mm/s	≥50 mm/s	≥40 mm/s	≥40 mm/s	≥40 mm/s
Heating plate size	400 mm×400 mm	500 mm×500 mm	550 mm×600 mm	650 mm×700 mm	850 mm×1000 mm	1000 mm×1200 mm
Heating plate spaceing	250~350 mm	200~400 mm	180~480 mm	300~500 mm	400~500 mm	400~500 mm
Max temperature	250 °C	250 °C	250 °C	250 °C	250 °C	250 °C
Material cylinder spec	Ø70 mm×215 mm	Ø80 mm×255 mm	Ø90 mm×290 mm	Ø110 mm×355 mm	Ø130 mm×445 mm	Ø160 mm×780 mm
Injection stroke	305 mm	380 mm	450mm	580 mm	680 mm	1060 mm
Injection pressure	70 MPa	100 MPa	100 MPa	100 MPa	80 MPa	90 MPa
Ejector stroke	250mm	250mm	300mm	350 mm	400 mm	-
Max ejector force	40 kN	60 kN	60 kN	60 kN	120kN	-
Motor power	5.5 kW	5.5 kW	5.5 kW	5.5 kW	(7.5+4) kW	(11+11) kW
Heating power	6.4 kW	9.8 kW	13.1 kW	19 kW	34 kW	52 kW
Extemal dimension(L×W×H)	1550mm×1850mm×(2500~2600)mm	1660mm×2100mm×(2800~3000)mm	1900mm×2400mm×(3000~3200)mm	2100mm×2700mm×(3650~3850)mm	2500mm×3500mm×(4800~5200)mm	2700mm×4100mm×(5780~5880)mm
Oil tank capacity	160 L	270 L	320 L	350 L	500 L	1000 L
