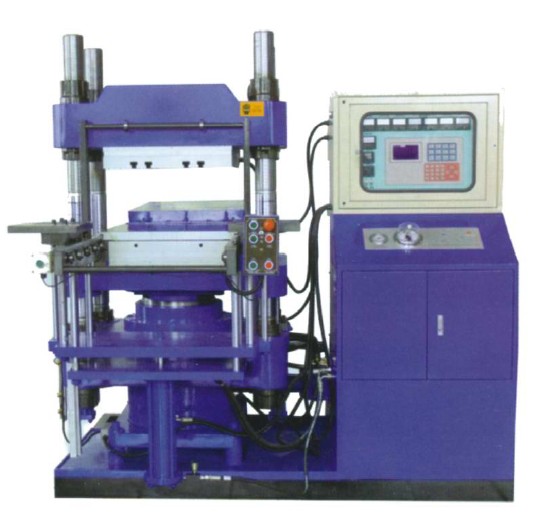

Plate Vulcanizing Press For Rubber

Special note

XLB seriesplate vulcanizing press for rubber is the main molding equipments for various of rubber molding products and non-molding products, with simple structure, high pressure, wide applicability, and high efficiency. The equipment is also suitable for molding to thermosetting plastic, bubble, resins, bakelite, sheet metal, building materials and other molding products.
Details
 MODEL
XLB-D350×350
XLB-D400×400
XLB-D450×450
XLB-D505×510
XLB-D600×600
 Clamping force
400 kN
630 kN
1000 kN
2000 kN
3000 kN
 Clamping stroke
250 mm
250 mm
300 mm
250 mm
250 mm
 Rapid clamping speed
≥20 mm/s
≥50 mm/s
≥50 mm/s
≥50 mm/s
≥40 mm/s
 Heating plate size
350 mm ×350 mm
400 mm ×400 mm
450 mm ×450 mm
505 mm×510 mm
600 mm×600 mm
 Heating plate spaceing
-
-
-
200~350 mm
200~350 mm
 Max temperature
250°C
250°C
250°C
250 °C
250 °C
 Number of working layers
2 layers
2 layers
2 layers
1 layers
1 layers
 Spacing
125 mm
125 mm
150 mm
60 kN
60 kN
 Max ejector force
-
-
60 kN
5.5 kW
7.5 kW
 Motor power
2.2 kW
4 kW
4 kW
10.5 kW
14.4 kW
 Heating power
7.2 kW
9.6 kW
11.7 kW
1850mm×2200mm×2010mm
2200mm×2550mm×2950mm
 Extemal dimension(L×W×H)
1260 mm×820 mm×1540 mm
1450 mm×900 mm×1575 mm
1500 mm×1430 mm×1660 mm
300 L
300 L
 Oil tank capacity
110 L
150 L
250 L
2000 kN
3000 kN
