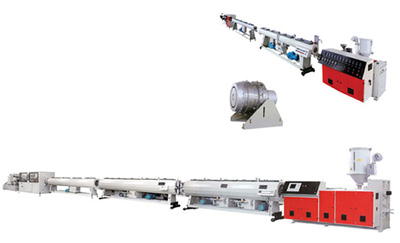

HDPE PP Pipe Extrusion Line

Special note
HDPE sewries plastic pipe production line is mainly used in the area of agricultural water supply single extruder,system,architectural water supply system,pavement of cables,etc.
Details
This machine group consists mainly of vacuum calibrating tank,haul-off unit,cutting unit,stacker,etc.Single screw extruder and hual-off unit have applied imported AC inverter,both vacuum pump and driving moto have applied excellent products.The haul-off unit includes two-claw type,three-claw type,four-claw type,eight-claw type,ten-claw type,twelve-claw type ,etc.Scraps fee cutting,saw cutting or planetary cutting can be applied,the property of machine group is reliable,the production efficiency is high.With special device,it can produce inner wall spiral pipe,inner wall hollow pipe ,and core layer foamed pipe etc.It can also produce PP,PE,ABS,PPR,PEX,sillicon core pipe and other material pipe.The planetary cutting machine is fully automatic computer digital control.It has such advantages of simple operation,reliable property,etc.

Model
Pipe diameter (mm)
Capacity (kg/h)
Max. Haul-off speed (r/min)
Total power (kw)
Line length (m)
PE63
16-63
100-150
10
75
35
PE125
40-125
200-250
6
145
38
PE250
90-250
300-350
3.5
195
42
PE315
110-315
300-350
3
220
44
PE450
160-450
400-500
1.2
300
56
PE500
200-500
400-500
1.1
330
56
PE630
250-630
700-800
0.9
480
64
PE800
400-800
900-1000
0.7
540
72
