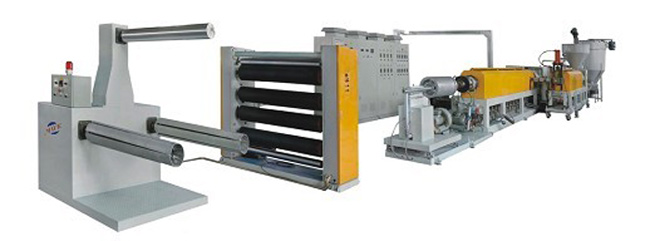

PSP F OAMED S HEET Extrusion Line

Special note
Foaming polystyrene slice material extrude machine group is kind of the most common 2grades series type high foaming slic material production equipment,it take general polysty as raw material injection foaming agent with high pressuer in extruding process,extrudes from dies and forming into high foaming slice material.This material through vacuum hot forming can be made into every sort of packing container,such as fast meal box,instant noodle bowl.The sheets are widely used in KT board(decorative board),inner ceiling of car and thermal-insulating bar,and the thick plates are widely used in civil works)highway and airport),colorful sheet sandwiched sheet and refrigerating warehouse,etc.
Details
Model
PSP¢80/¢100
PSP¢90/¢120
PSP¢120/¢150
Capacity(kg/h)
65-85kg/hr
175-200kg/hr
250-320kg/hr
Sheet width
500-1400mm
500-140mm
500-1400mm
Sheet thickness
0.7-5mm
0.7-5mm
1.5-5mm
Total power
280KW
280KW
330kw
Density
55-400g/m2
55-400/M2
70-450G/M2
Machine weight
12T
15T
17T
