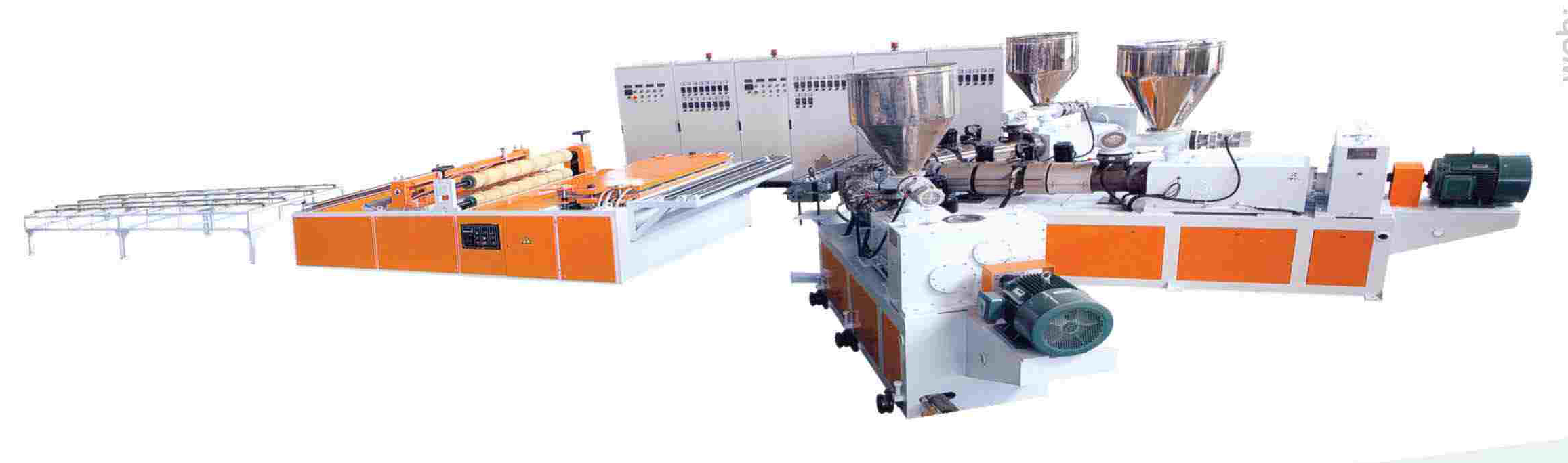

PP,PC And PVC Single/Multi-Layer Corrugate Sheet Extrusion Line

Special note
High special design for screw,it fulfill the low temperature extrusion.Clothes-hanger flat T-Die, equipped with pneumatic up-down calibration unit.It is flexible, reliable and it is easyto adjust the thickness. The rubber haul off is equipment with corrugated style, make the haul off stable,convenient adjustment between roll. Precision design cutting method, helical cutting automatically, can meet the fixed length automatic cutting.
Details
Extruder specification
SJSZ65/132.2×SJSZ50/105
SJSZ80/156.2×SJSZ65/132
Main motor power(kw)
37kw.2×18.5kw
55kw.2×37kw
Production width(mm)
1140mm
1340mm
Max.capacity(kg/h)
180kg/h,120kg/h
250kg/h
