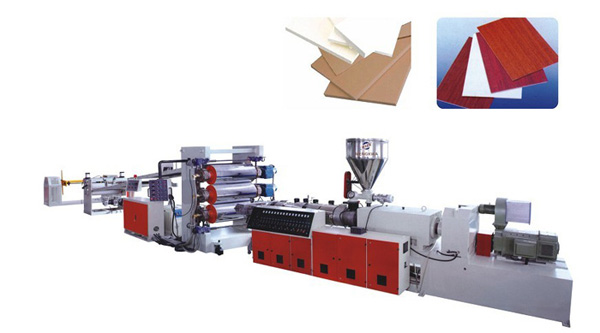

PVC Free Foamed Sheet And Decorative Sheet Extrusion Line

Special note

The foamed produt thickness range vfrom 3-20mm,and width up to 2000mm:
The line are also designed for produce PVC solid sheet and board which thickness ranged from 0.3-6mm,width range range from 500-2000mm

Details
Model
SJSZ80-1400
SJSZ80-1400
Processing material
PVC(foam)
PVC(decoration)
Product width(mm)
1220
1220
Product thickness(mm)
1-20
1-3
Output capacity(kg/h)
350
300
Extruder size
SJSZ80/156
SJSZ80/156
Die specification
L=1400mm
L=1350mm
Specification of calender
400×1500mm
400×1400mm
Production speed(m/min)
0.3-3
0.3-3
Total power
200kw
200kw
