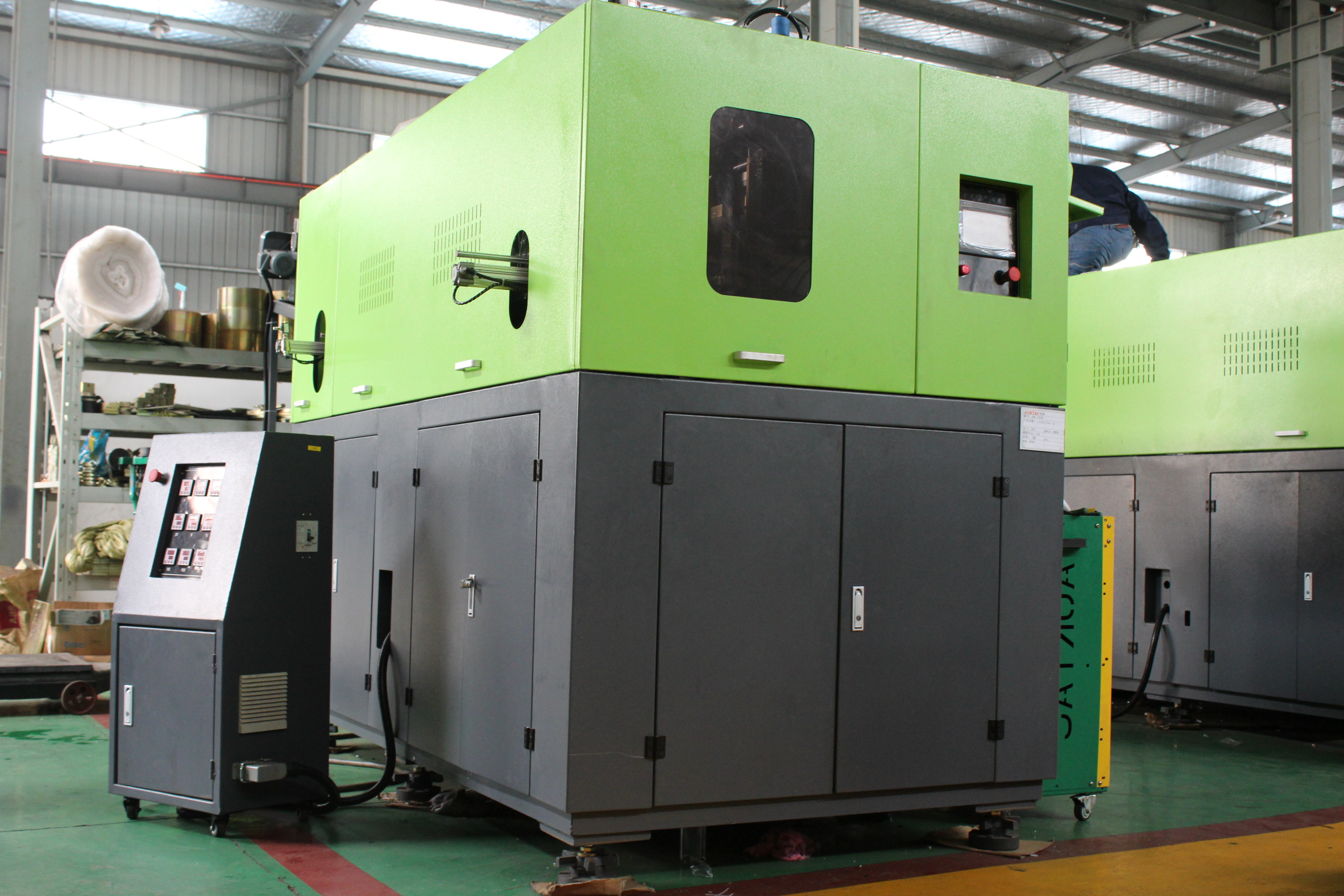

Fully Automatic Blow Molding Machine

Special note
1).Use screw of servo driver moving system.
2).Automatic feeding heating and blowing.
3).Patented perform feeding system for easy and safe.
4).Heating system for each lamp adjustment and constant SCR voltage control system.
5).Touch screen human-machine interface for easy operation.
6).Modular component design for easy maintainer.
7).Compact design for effective usage of floor space.
8).Intelligent flow control with high pressure valve.
Details

Model
Unit
4000
4000L
Clamping System
Number of activity
cavities
4
4
Clamping unit
kg
42000
48000
Mold stroke
mm
90
130
Stretch stroke
mm
250
340
Bottom stroke
mm
30
30
Cavity pitch
mm
76.2
120
Heating pitch
mm
76.2
55
Number of holder
pcs
86
114
Container
Max. container volume
ltr
0.6
2
Max. outer diameter
mm
38
38
Max. perform height
mm
140
140
Max. container diameter
mm
110
110
Max. container height
mm
250
340
Theoretical output
B.P.H
4000
4000
Electrical System
Heating oven
units
8*7
4*12
Box*channel



Number of lamp
56
48
56
Heating power
67.2
57.6
67.2
Installed power
75
65
75
Voltage
220V/380V/3phase
220V/380V/3phase
220V/380V/3phase
Air System
Operating
kg/c
7
7
Blowing pressure
mpa
3.5
3.5
High pressure air consuming
l/min
4200
4200
Power
kw
44
44
Chiller System
Temperature
10-15
10-15
Pressure
mpa
0.3-0.5
0.3-0.5
Flow rate
l/min
80
80
Heating power
hp
6
6
Machine
L*W*H(Machine dimension)
m
4.8*2.2*2.2
3.4*2.2*2.2
Machine weight
kg
6000
5000
