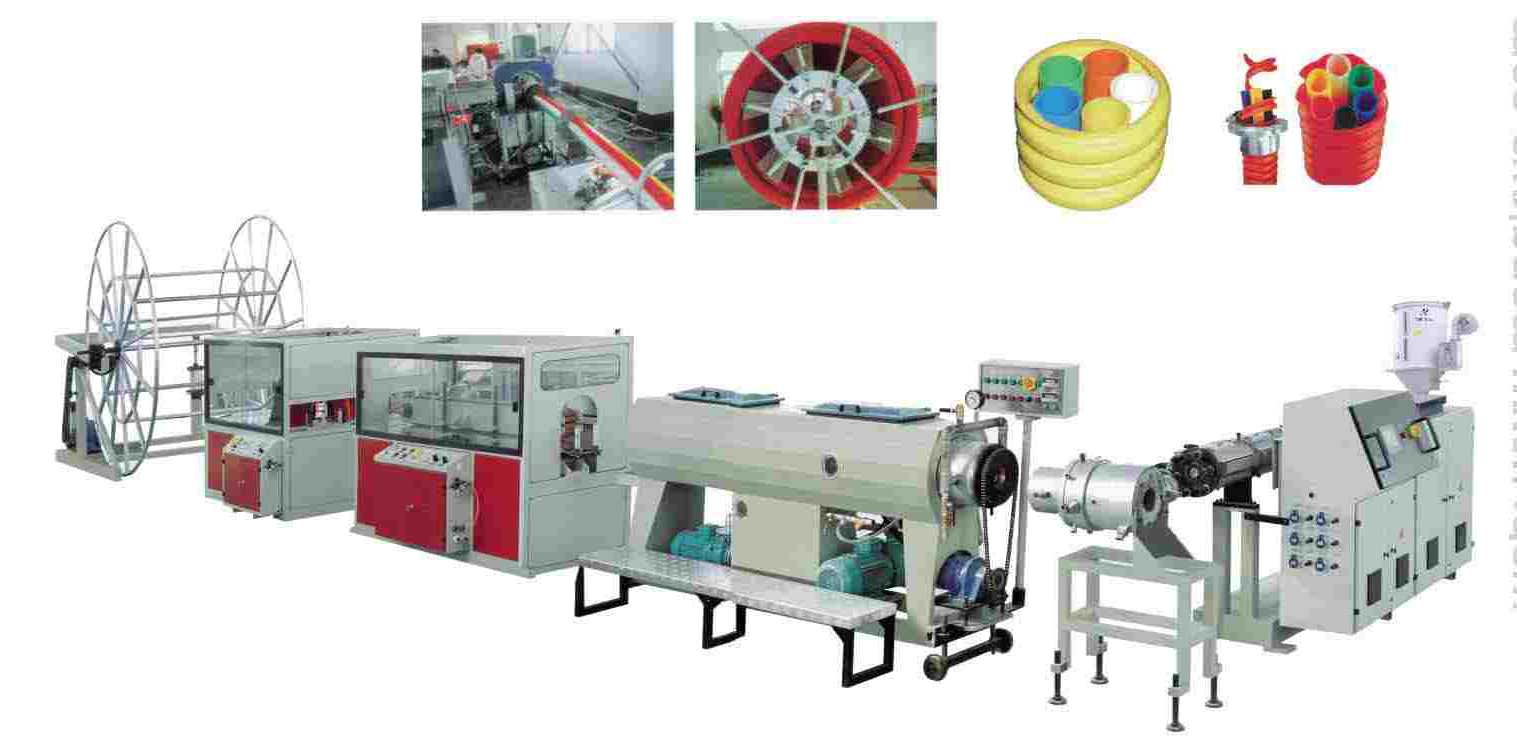

PE Carbon Spiral Reinforce Pipe Extrusion Line

Special note
The line can be used to produce carbon fibre pipe which is made of PE and carbon.
The kind of pipe is made of the special structure and materials.It has the advantages of high strength,high toughness,anti-corrosion,light weight,long life,etc and is becoming as a replacement of cast iron pipe,rubber pipe and PVC pipe.It is widely used in such fialds as irrigation(draining and feeding water),protecting the surface of cable,ventilation,exhaust,etc.
Details
Model

TSG65
TSG90
TSG120
Extruder

65/25
90/25
120/25
Range of pipe dia

40-100
80-150
150-200
Output
mm
15-40
36-80
65-120
Installed capacity(approx)
Kg/h
32.7
50.2
128
Average power
consumpion(approx)
kw
19.56
30.12
80
Dimensions(L×W×H)(approx)
m
4×1.4
11×4.5×1.8
13.5×5.5×2
Total weight(approx)
t
4
6
10
