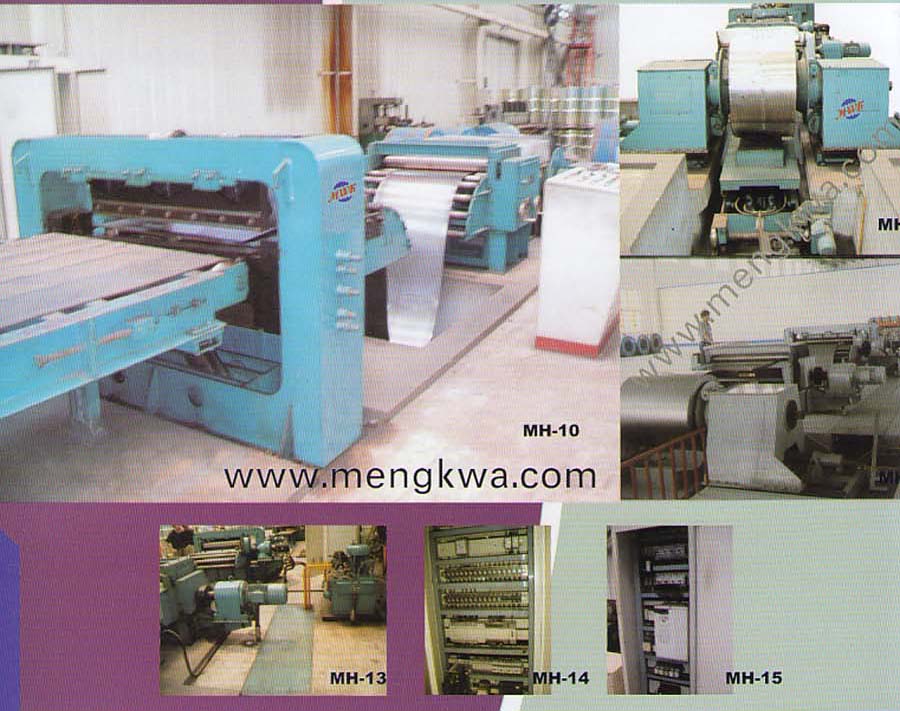

Cutting Machine

Special note

Use the lifting equipment to put the steel coil on the coil cart (weight is less than 8 ton) ----double wi,ble uncoil machine----7 roller leveler machine----accumlator----measurement facility----hydraulic cutter----transporter----stow stand

Details



1. Width of coil: 600-1320mm; thickness: 0.8-1.5mm
2.Production capacity: cutting 5-9 time/min; Max.cutting speed: 10m/min
3.Total power of the equipment: 16kw
4.Total weight of the equipment: about 15ton
5.Cutting precision: Length: ≤0.5mm; Diagonal: ≤1mm
6.Equipment introduction:
A : coil cart: driven by 3 in 1 motor, go up and down by hydraulic
B : double wimble uncoil machine: no power truning, hydraulic driving, coil inner diameter 508-610mm
C: 7 roller leveler machine: 7 roller leveling, motor speed adjustable by change frequency
D: measurament facility: the length and precision is controlled bu A.C. servo motor made in japan
E: hydraulic cutter: use the up cut type hydraulic cutter avoid of injury the surface of the steel plate during the stowing
F: transporter: rollers conveyer
