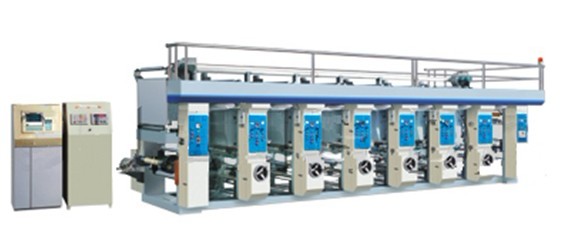

High-Speed Auto Rotogravure Printing Machine
Main Technical Variables
|
MODEL OF MACHINE |
MWK-8/850ASY-A |
MWK-8/1100ASY-A |
MWK-8/650AZJ-B |
MWK-8/850AZJ-B |
MWK—8/1100AZJ-B |
|
PRINTING COLOR |
8 |
8 |
8 |
8 |
8 |
|
MATERIAL THICKNESS |
0.02-0.10mm |
0.02-0.10mm |
0.02-0.10mm |
0.02-0.10mm |
0.02-0.10mm |
|
COLLATE METHODE |
manual |
manual |
manual |
manual |
manual |
|
WEB WIDTH |
800 |
1000 |
600 |
800 |
1000 |
|
MAXIMUN PRINTING LENGTH |
240-1100 |
240-1100 |
1000 |
1000 |
1000 |
|
PRINTING SPEED |
10-120 |
10-120 |
10-70 |
10-70 |
10-70 |
|
REGISTERING ACCURACY |
±0.12 |
±0.12 |
±0.15 |
±0.15 |
±0.15 |
|
TOTAL POWER |
75 |
98 |
26 |
32 |
38 |
|
WEIGTH |
13500 |
16500 |
6000 |
7000 |
8500 |
|
OVERALL DIMENSIONS(L*W*H)mm |
13000×2200×2800 |
13000×3010×2800 |
11000×1700×2300 |
11000×1900×2300 |
11000×2200×2300 |
