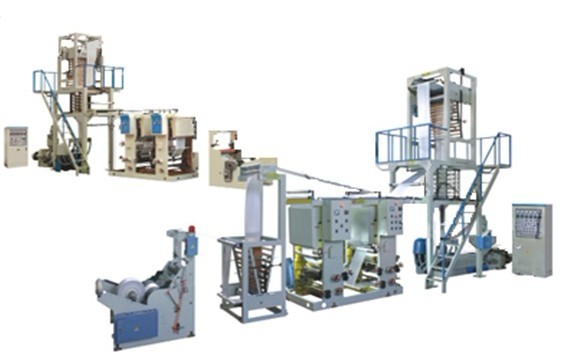

PE Blown Fillm Rotogravure Printing Line Machine
Main Technical Variables
|
MODEL OF MACHINE |
MWK-45CY-J |
MWK-50CY-J |
MWK-55CY-J |
|
SUITABLE MATERIAL |
HDPE/LDPE |
HDPE/LDPE |
HDPE/LDPE |
|
SCREW DIAMETER(mm) |
φ45 |
φ50 |
φ55 |
|
SCREW L/D LENGTH |
28：1 |
28：1 |
28：1 |
|
BLOWING FILM DRIVING MOTOR (kw) |
15 |
18.5 |
22 |
|
MAX.EXTRUSION OUTPUT(kw/hr) |
45 |
60 |
75 |
|
DIE SIZE(mm) |
60/80 |
80/1000 |
100/125 |
|
WIDTH OF BLOWING FILM |
600 |
800 |
1000 |
|
THICKNESS OF BLOWING FILM(mm) |
0.01-0.06 |
0.01-0.06 |
0.01-0.06 |
|
MAX.PRINGTING WIDTH(mm) |
560 |
760 |
960 |
|
PRINTING LENGTH（mm） |
250-1000 |
250-1000 |
250-1000 |
|
PRECISION OF COLOR PRINTING(mm) |
Cross wise:0.2 |
Cross wise:0.2 |
Cross wise:0.2 |
|
WEIGHT OF OVERALL(kg)(two color) |
4500 |
5000 |
5500 |
|
COVER DIMNSIONS(L*W*H)(m) |
8.0×2.2×4.5 |
8.5×2.4×5.2 |
9.0×2.8×5.5 |
OPTIONAL EQUIPMENT:
1. AUTO LOADER 2. DIE ROTARY DEVICE 3. FOLDING LINE MACHINE
