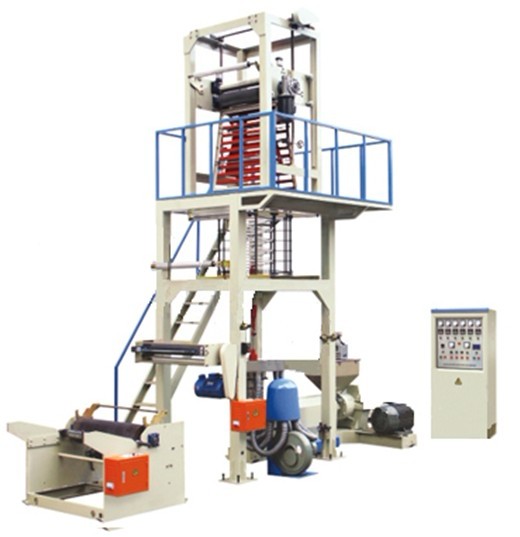

HDPE High Speed Blown Film Machine
Main Technical Variables
|
MODEL |
MWK/H-45E |
MWK/H-50E |
MWK/H-55E |
MWK/H-65E |
|
SUITABLE MATERIAL |
HDPE |
|||
|
FILM WIDTH (mm) |
200-600 |
300-800 |
400-1000 |
600-1300 |
|
FILM THICKNESS (HD) mm |
0.009-0.05 |
0.009-0.05 |
0.009-0.05 |
0.01-0.05 |
|
MAX.EXTRUSION OUTPUT（HD） |
55kg/hr |
70kg/hr |
85kg/hr |
110kg/hr |
|
SCREW DIAMETER(mm) |
φ45 |
φ50 |
φ55 |
φ65 |
|
SCREW L/D LENGTH |
28:1 |
|||
|
SCREW MATRIAL |
SACM-645/38 CRMOALA |
|||
|
CYLINDER MATRIAL |
SACM-645/38 CRMOALA |
|||
|
CYLIDER COOLING |
370w×2 |
370w×2 |
550w×2 |
550w×3 |
|
DRIVING MOTOR (kw) |
15 |
18.5 |
22 |
37 |
|
TEMPERATURE CONTROL |
3 |
3 |
3 |
4 |
|
AVERAGE POWER-CONSUME (kw) |
18 |
26 |
31 |
45 |
|
DIE SIZE(mm) |
60/80 |
80/100 |
100/125 |
125/150 |
|
TEMPERATURE CONTROL |
3 |
|||
|
AIR RING |
1 |
|||
|
AIR BLOWER (kw) |
2.2 |
2.2 |
3 |
5.5 |
|
CENTER STEADY STICK |
2(HDPE) |
|||
|
PINCH ROLLER (DIA.WIDTH)mm |
φ165×650 |
φ165×850 |
φ 165×1100 |
φ165×1400 |
|
HIGHT ADJUSTABLE TYPE |
700mm |
|||
|
TAKE-UP SPEED(m/min) |
10-100 |
10-100 |
10-100 |
10-80 |
|
TAKE-UP MOTOR (kw) |
0.75 |
1.5 |
1.5 |
1.5 |
|
TYPE |
SURFACE FRICTION TYPE |
|||
|
WINDING MOTOR(kw) |
5 |
10 |
10 |
16 |
|
WINDING SPEED (m/min) |
10-100 |
10-100 |
10-100 |
10-80 |
|
COVER DIMENSION |
5.0×2.0×4.5 |
5.0×2.2×5.0 |
5.5×2.5×5.5 |
5.8×2.8×6.5 |
OPTIONAL EQUIPMENT:
1. AUTO LOADER 2. EMBOSSING ROLLER 3. CORONA 4. DIE ROTARY DEVICE
5. AIR COMPRESSOR 6. MANUAL MECHANICS SCREEN CHANGER
7. AIR COOLING DEVICE
