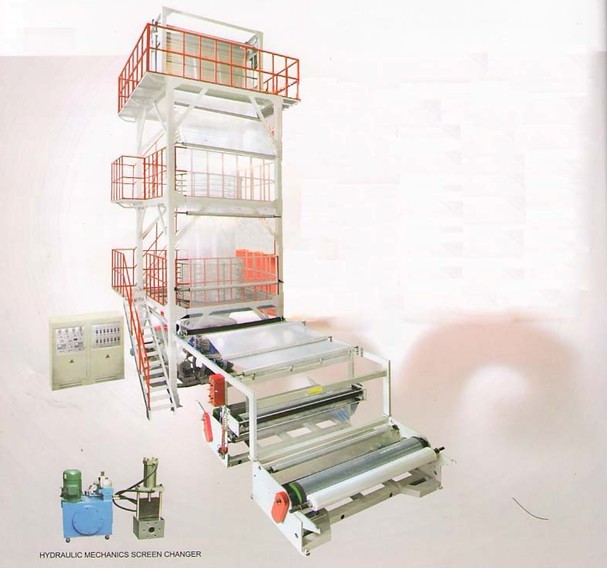

MODEL

MWK/L-65B

MWK/L-80B

MWK/L-100B

MWK/L120B

SUITABLE MATERIAL

LDPE

LLDPE

FILM WIDTH (mm)

800-1500

1000-2000

1500-2500

1800-3300

FILM THICKNESS (mm)

0.015-0.15

0.015-0.15

0.015-0.15

0.015-0.15

MAX.EXTRUSION OUTPUT

150kg/hr

280kg/hr

350kg/hr

450kg/hr

SCREW DIAMETER(mm)

φ65

φ80

φ100

φ120

SCREW L/D LENGTH

28:1

SCREW MATRIAL

SACM-645/38 CRMOALA

CYLINDER MATRIAL

SACM-645/38 CRMOALA

CYLIDER COOLING

550w×3

550w×3

750w×4

750w×4

DRIVING MOTOR (kw)

37

55

90

110

TEMPERATURE CONTROL

4

4

5

5

AVERAGE POWER-CONSUME (kw)

45

65

90

110

DIE SIZE(mm)

350/400

400/500

500/600

700/800

TEMPERATURE CONTROL

3

4

4

5

AIR RING

1

AIR BLOWER (kw)

5.5

5.5

7.5

11

PINCH ROLLER (DIA.WIDTH)mm

φ165×1600

φ190×2100

φ 190×2600

φ220×3500

TAKE-UP SPEED(m/min)

5-60

5-60

5-60

5-60

TAKE-UP MOTOR (kw)

1.5

1.5

2.2

2.2

TYPE

SURFACE FRICTION TYPE

WINDING MOTOR(kw)

1.5

1.5

2.2

2.2

WINDING SPEED (m/min)

5-60

5-60

5-60

5-60

COVER DIMENSION

6.8×2.6×6.5

7.5×3.2×7.2

9.0×4.2×10

11×5.0×11.5
