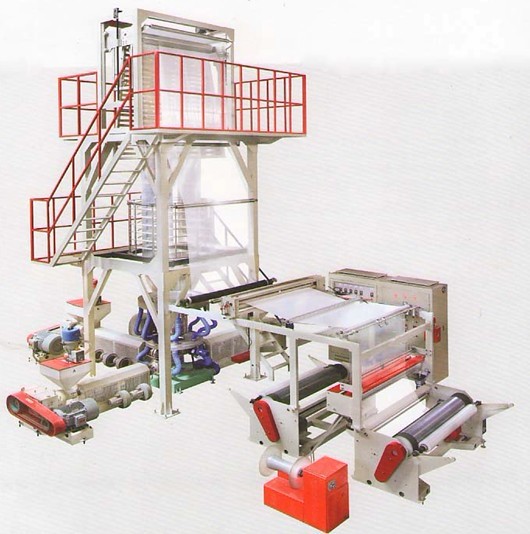

A+B+C Three-Layer Co-Extrusion Blowing Film Machine
MODEL MWK-3L45 MWK-3L50 MWK-3L55 SUITABLE MATERIAL HDPE LLDPE HDPE EVA FILM WIDTH (mm) 800-1300 800-1500 1200-2000 FILM THICKNESS (mm) 0.028-0.25 0.028-0.25 0.03-0.25 MAX.EXTRUSION OUTPUT 130kg/hr 190kg/hr 260kg/hr SCREW DIAMETER(mm) Aφ45 Bφ50 Cφ45 Aφ50 Bφ55 Cφ50 Aφ55 Bφ65 Cφ55 SCREW L/D LENGTH 28:1 SCREW MATRIAL SACM-645/38 CRMOALA CYLINDER MATRIAL SACM-645/38 CRMOALA CYLIDER COOLING 370w×2/3 370w×2/3 550w×2/3 DRIVING MOTOR (kw) A15+B18.5+C15 A18.5+B22+C18.5 A22+B37+C22 TEMPERATURE CONTROL 3x3 3x3 3x3 AVERAGE POWER-CONSUME (kw) 58 70 90 DIE SIZE(mm) 200/250 250/300 350/400 TEMPERATURE CONTROL 4 AIR RING 1 AIR BLOWER (kw) 5.5 7.5 11 PINCH ROLLER (DIA.WIDTH)mm φ165×1400 φ135×1800 φ 190×2100 TAKE-UP SPEED(m/min) 5-60 5-60 5-60 TAKE-UP MOTOR (kw) 1.5 1.5 2.2 TYPE SURFACE FRICTION TYPE WINDING MOTOR(kw) 1.5 1.5 2.2 WINDING SPEED (m/min) 5-60 5-60 5-60 COVER DIMENSION 7.5×5.5×6.5 8.2×5.8×7.2 9.0×6.4×8.2
OPTIONAL EQUIPMENT:
1. AUTO LOADER 2. CORONA 3. DIE ROTARY DEVICE (INCLUDED)
4. AIR COMPRESSOR 5. MANUAL MECHINICS SCREEN CHANGER (INCLUDED)
