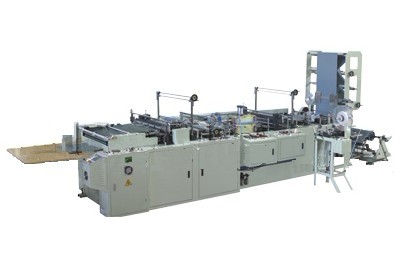

Ribbon-Through Thermal Cutting Machine
Main Technical Variables
|
MODEL |
MWK-700CBF |
MWK-900CBF |
|
Maximum base material width |
650mm |
850mm |
|
Maximum sealing and cutting length |
700mm |
900mm |
|
Bag making thickness |
0.008-0.05mm |
0.008-0.05mm |
|
speed of making |
30-110 pcs/min |
30-110 pcs/min |
|
Total power |
6Kw |
8Kw |
|
machinery weight |
1350kg |
1500kg |
|
dimension |
7000×1500×1900mm |
7000×1700×1900mm |
