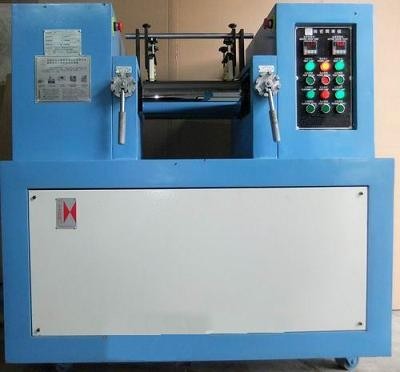

Opening Milling Machine (7inch)

Special note
Opening Milling Machine (7inch)
Details
Parameter
Opening Milling Macine (7inch)
Heating type
Cooling type
(MWK-7IN)
Mixing capacity

 0.1--5kgs
Roller temperature
no request
Temperature precision
no request
Heating type
Natural friction
Roller rotation speed
Fixed speed (15 turn around)
Roller ratio
１：１．２５
Roller size
ф180mm×L 450mmTaiwan made high hardness; lens face processing hard chromium surface coating,nonstick, non leafing;Steel hole technology non breakage, non-deformance
Roller distance
 0～6mm adjustable
Safety device
many touch-type emegency stopper (with reverse function, safety first, humanization design, injury
Motor
5.5KW1pc( latest technical design,machine structure adjusting,and traditional technical mechnical drive 3.7KW, same output torque force, to realize enegrgy saving)
Power
8HP
Dimension
(W×D×H) 1200×600×1300mm(smaller dimension and little area-wasting than traditional technology under the same function
Roller lubricating
wear-resisting bearing large contact area;two-thirds of the servicelife longer than conventional copper
Machine structure
steel plate (more light, samller dimension, higher mechnical strength, better toughness than traditional technology）
Power
3∮，AC380V，8A
Others
Multiple safety protection device at front and rear to ensure the safety of operators (sync control by hands and feet - stop - reverse)
Positive safety device includes: an emergency stop button on both left and right, power switch, stop switch, machine body point action reverse door.
Back safety device includes: an emergency stop button on the left and right, machine body point action reverse door.
Oil filling: machine plat is equipped with a lubricating grease gun; butter oil is more wearable than other oil, extending life span of machine.
Pots: SS, easy to clean, pollution-free rust, permanent use
there are two wear-resistant high-temperature profiles at the two ends of roller for the flexible adjusting for width. Any qty of refining rubber could be achieved.
Little refining rubber: adjust to the middle/
Much refining rubber: adjust to both sides.
