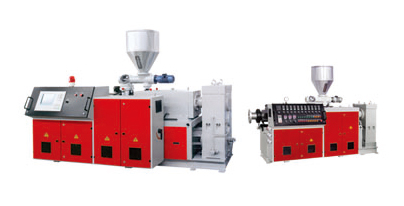

Conical Twin Screw Plastic Extruder

Special note
Model SJSZ series conical twin-screw plastic extruder is used for extrude PVC to become plastic pipe,profile,plate and etc when change diffreent mould,screw and auxiliary equipments.
It includes screw,barrel,gear transmission system,heating,cooling and electric control and etc.
The screw has applied oil cooling system.Barrel is cooled by special wing cooling system.Vacuum exhausting and material feeding device is fixed with machine.
Details
Model
SJSZ45/90
SJSZ51/105
SJSZ55/110
SJSZ65/132
SJSZ80/156
SJSZ92/188
Screw diameter(mm)
45/90
51/105
55/110
65/132
80/156
92/188
Quantity of screws
2
2
2
2
2
2
Max. rotation  speed of screw (r/min)
45
40
38
38
37
36
Effective length of screw (mm)
99
1200
1200
1440
1800
2500
Main motor power(kw)
15
18..5
22
37
55
110
Production capacity (kg/h)
70
100
150
250
400
750
Centre height (mm)
1000
1000
1000
1000
1100
1200
Dimensions(L x W x H) mm
3360 x 1290 x 2127
3360 x 1290 x 2127
3620 x 1050 x 2157
3715 x 1520 x 2450
4750 x 1550 x 2460
6725 x 1550 x 2814
